Name: Stainless Steel Linear Transfer Digital Output Pressure Sensor Easy Use
Brand: Consensic
Price: 1 USD

Brand Name : Consensic

Model Number : CTS110

Place of Origin : WUXI

MOQ : Please contact us for details

Price : Offline contact or face-to-face discussion can be negotiated

Payment Terms : L/C/Ade/Pellet/Texi Union, MoneyGram, Alipay, and business-to-business payments

Supply Ability : 999

Delivery Time : 3-7 work days

Overload pressure : 2 Admito full range

Effects of changes in the ambient temperature : 0.03% / ℃, a typical value

stability : <0.5%FS / year

output : Current output 4 ~ 20 m ADC two lines; voltage output 0.5-4.5V

Power Supply Voltage : 10 to 36 VDC; 12 to 36 VDC or 5VDC at voltage output

Main material : 304, with stainless steel

Contact Now

Linear transfer function example: 1. Range 0~1.6Mpa (table pressure), 4 ~ 20 mA current output linear function is as follows:Aout =(400+P)/100

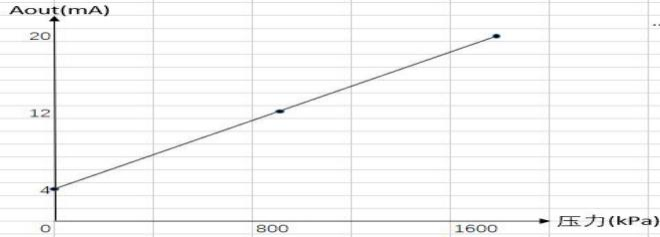

The linear diagram of the input pressure and the current output is as follows: linear transfer function.

Linear transfer function example: 1. Range 0~1.6Mpa (table pressure), 4 ~ 20 mA current output linear function is as follows:Aout =(400+P)/100

The linear diagram of the input pressure and the current output is as follows:

Stainless Steel Linear Transfer Digital Output Pressure Sensor Easy Use

2. Range 0~1.6Mpa (meter pressure), the linear function of 0.5V~4.5V voltage output is as follows:Vout =(200+P)/400

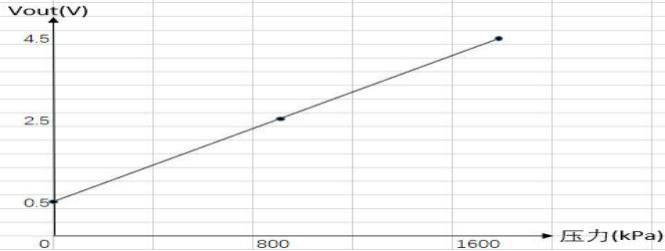

The linear diagram of input pressure and voltage output is as follows:

Stainless Steel Linear Transfer Digital Output Pressure Sensor Easy Use

output form

With shielded cable / GX 12 cable

Electrical connection

Current output, with a second-line system of 4~20mA

Pin 1 (Red Line) -Power Supply Positive Vs + Pin 2 (Black Line) -Power Supply Negative Vs-

Voltage output, three-wire

Pin 1 (red line) - -Power Supply Positive Vs +

Pin 2 (black line) -Power Negative / Common GND

Pin 3 (yellow line) - -Voltage output terminal Vout
